Name: QSFPDD 400G SR4 Optical Transceiver with MPO-12 Connector for 100m Transmission
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QDD-400G-SR4
Price: 900.00 USD
Availability: InStock

Zu Hause > produits > QSFP+-Transceiver >

QSFPDD 400G SR4 Optical Transceiver with MPO-12 Connector for 100m Transmission

Herkunftsort:

China

Markenname:

HiLink or OEM

Zertifizierung:

CE FCC ROSH

Modellnummer:

HL-QDD-400G-SR4

Kontakt mit uns

Bitte um ein Angebot

QSFPDD 400G SR4 Optical Transceiver with MPO-12 Connector for 100m Transmission

Einzelheiten zum Produkt

Datengeschwindigkeit:

400G

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 STÜCK

Preis

Verhandlungsfähig

Verpackung Informationen

Normale Verpackung oder OEM

Lieferzeit

5-8 Werktage

Zahlungsbedingungen

T/T, Paypal, Western Union

Versorgungsmaterial-Fähigkeit

2000pcs pro Woche

Verwandte Produkte

Video

400G OSFP LR4 10km Duplex LC-Übertragung über Single Mode Fiber (SMF) OSFP-Modul

Erhalten Sie besten Preis

Video

400G Basis SMF LR4 OSFP-Modul Duplex LC-Übertragung auf 10 km für 5G-Rechenzentrum

Erhalten Sie besten Preis

Video

Duplex-LC 100G FCC des QSFP+-Transceiver-VCSEL OM4 MMF QSFP+ Transceiver-850nm 100m

Erhalten Sie besten Preis

Video

Faser-optischer Transceiver MMF 150m Duplex-LC 100G QSFP28 SWDM4 für Data Center

Erhalten Sie besten Preis

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

QSFPDD 400G SR4 Optical Transceiver

Product Overview

This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 100m optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission.

On the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data. An optical fiber cable with an MPO-12 connector can be plugged into the QSFP-DD SR4 module receptacle, with proper alignment ensured by guide pins inside the receptacle.

Electrical connection is achieved through a QSFP-DD MSA-compliant edge type connector. This product meets QSFP-DD MSA Type2 specifications for form factor, optical/electrical connection, and digital diagnostic interface. Designed to withstand harsh external operating conditions including temperature, humidity, and EMI interference, it supports I2C interface for reading and controlling module status.

Key Features

QSFP-DD MSA Compliant
CMIS compliance
Optical Interface: IEEE 802.3db compliant
Electrical Interface: IEEE 802.3 2022 400GAUI-8
Support 425Gb/s aggregate bit rate
4 Parallel optical lanes
MPO-12 connector
Maximum link length of 70m on OM3 or 100m on OM4
Operating case temperature 0 to 70℃
Maximum power consumption 8W

Applications

The transceiver is designed for Ethernet, Telecom and Infiniband use cases. The application advertisements allow host software to select proper application following CMIS definition:

Application case 1: 1x400G SR4, 1 of 400G per port point to point connections
Application case 2: 4x100G SR, 4 of 100G per port point to point connections

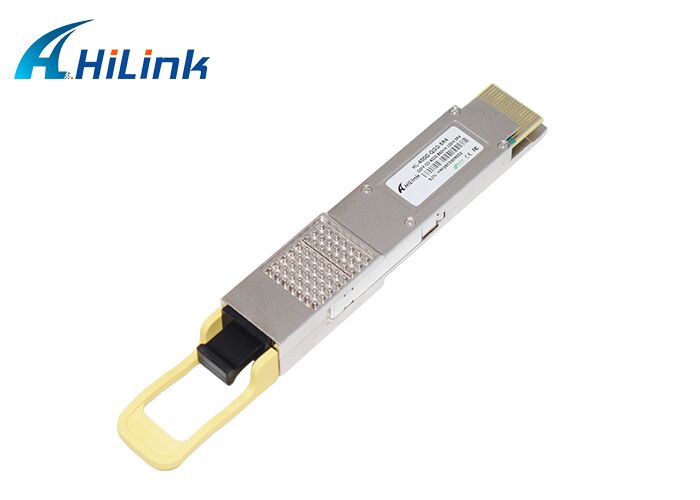

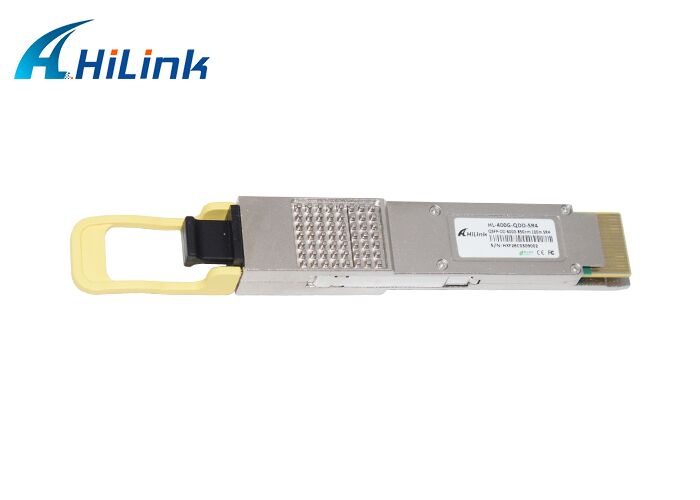

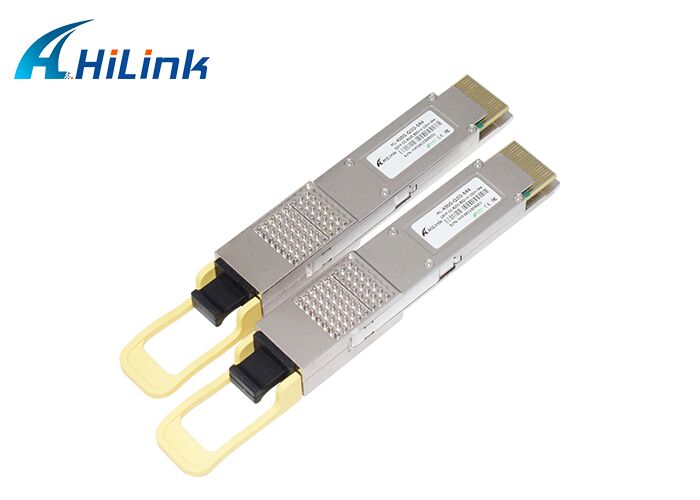

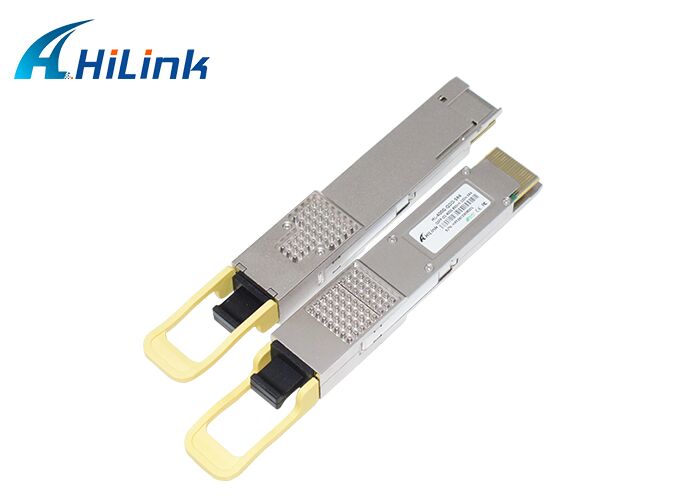

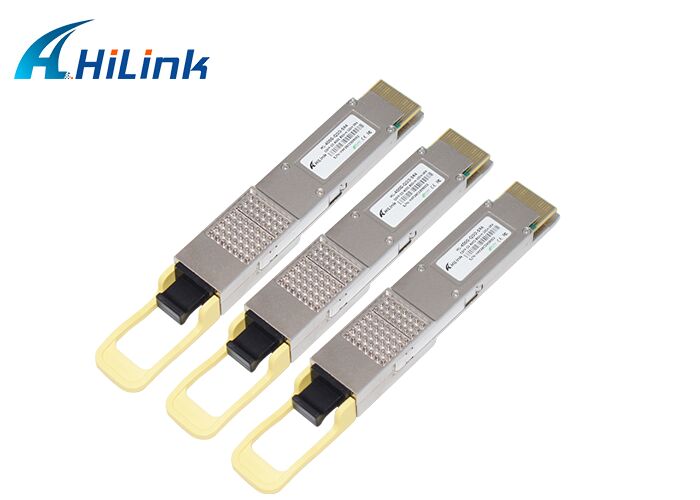

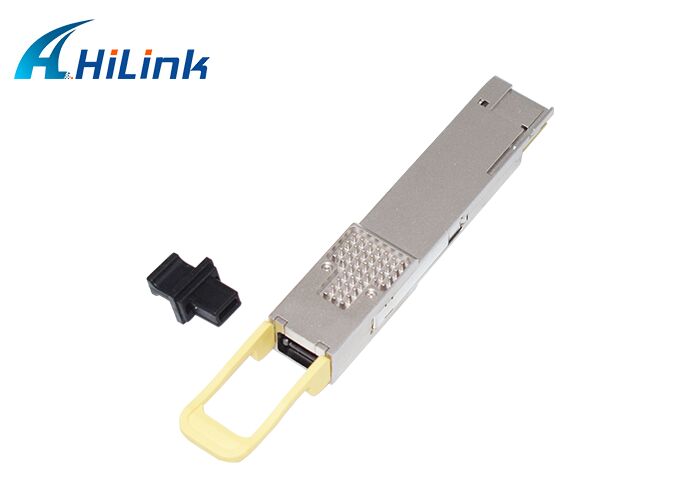

Product Images
