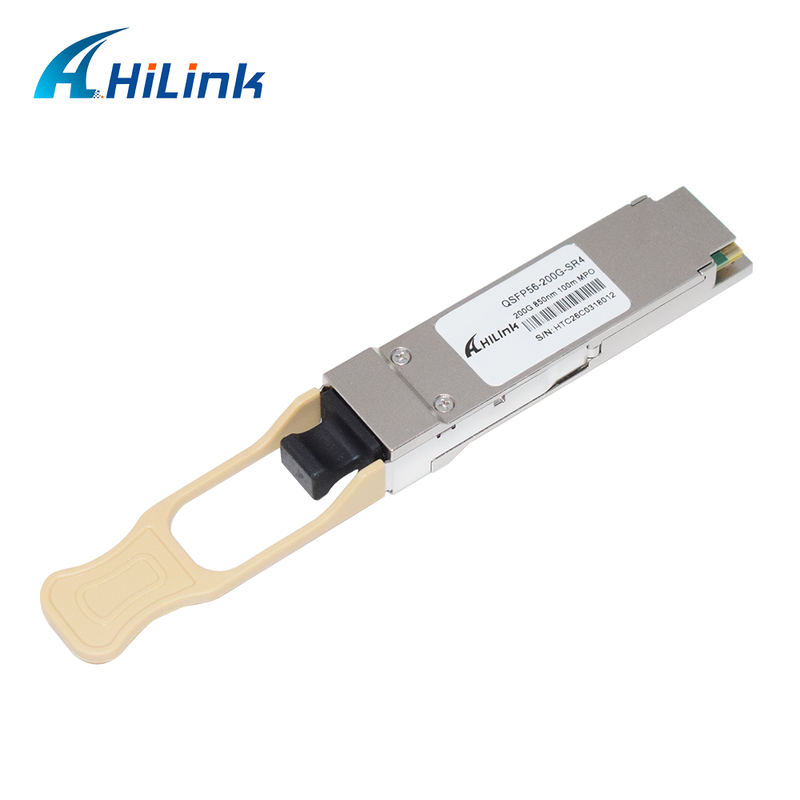

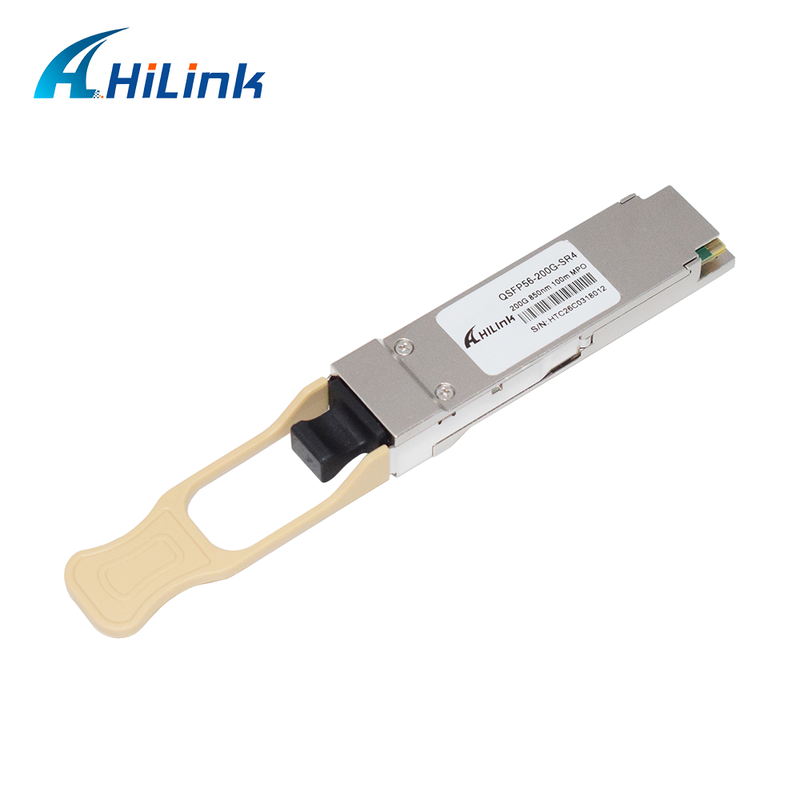

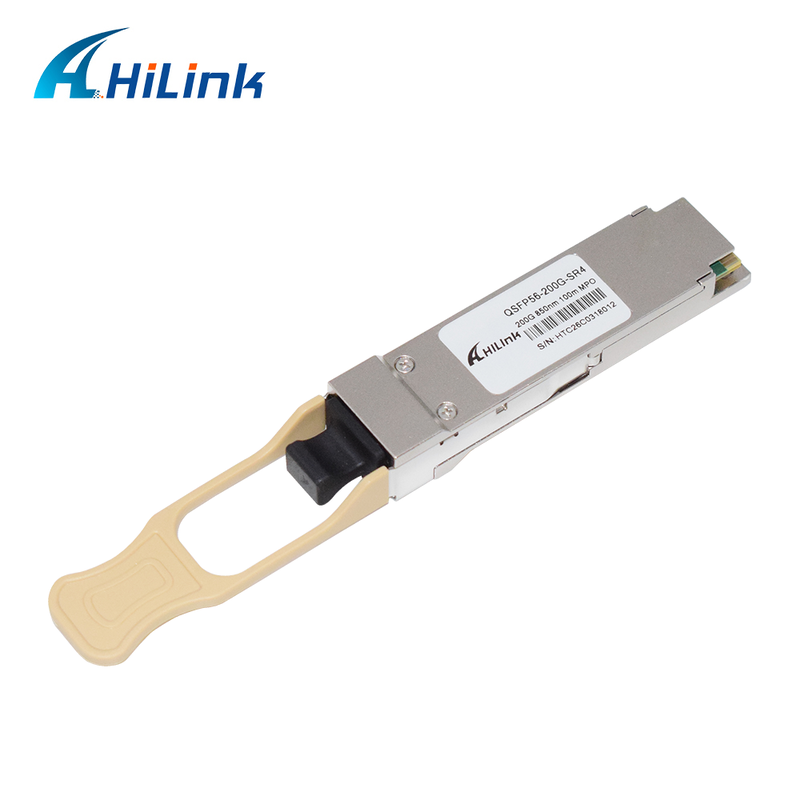

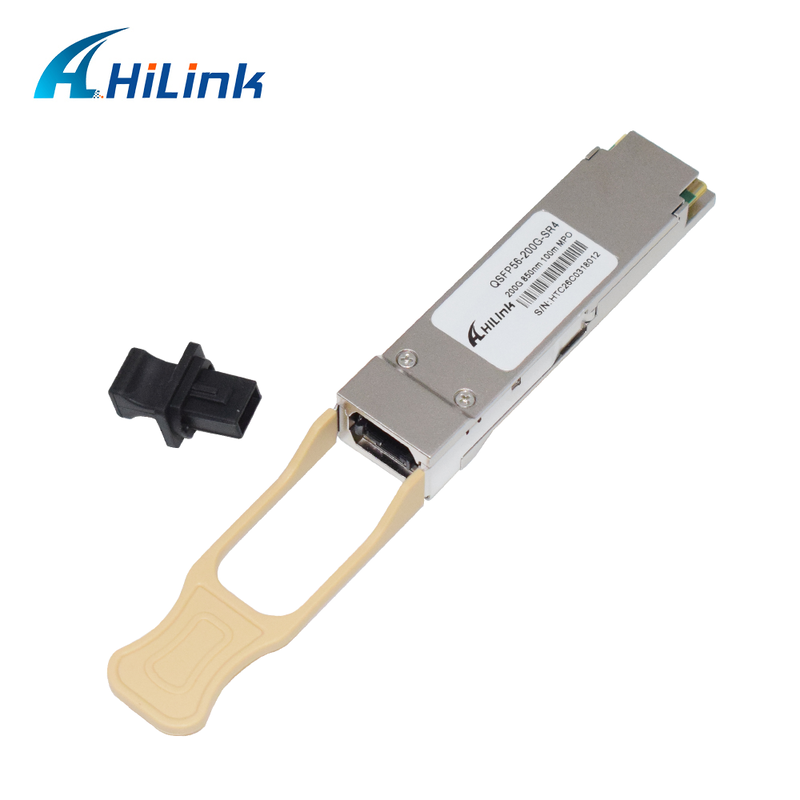

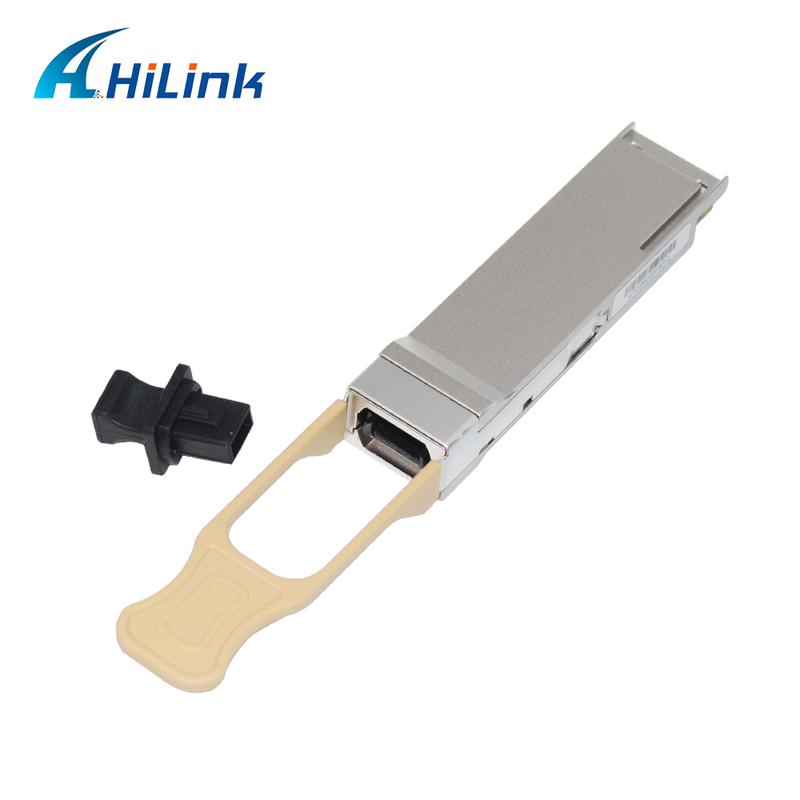

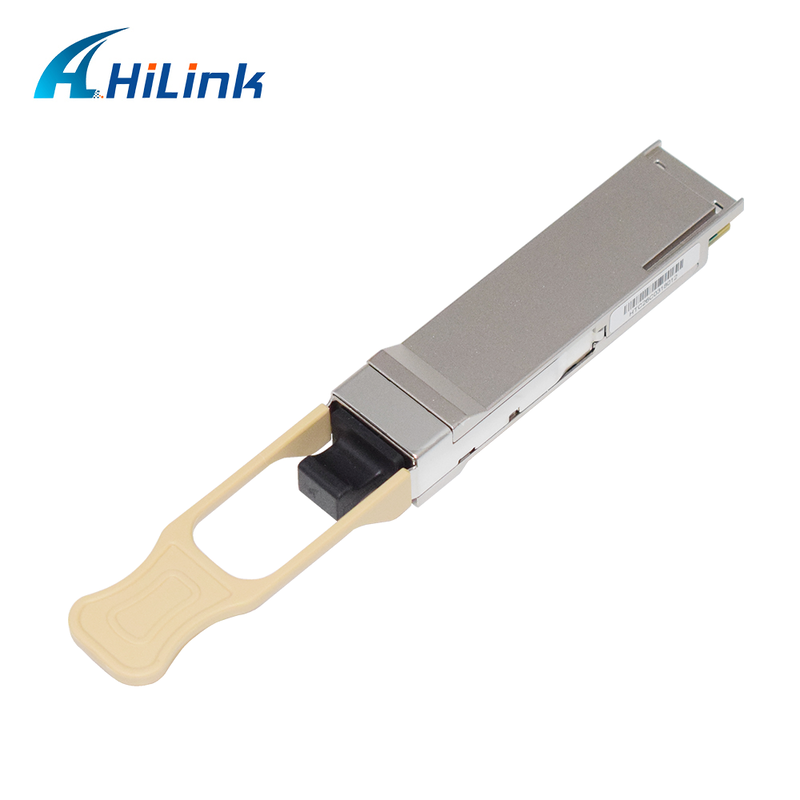

Name: Hilink QSFP56-200G-SR4 200G BASE-SR4 QSFP56 Transceiver with 850nm Multi-mode and Diagnostic Monitoring
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP56-200G-SR4
Price: 900.00 USD
Availability: InStock

Zu Hause > produits > QSFP+-Transceiver >

Hilink QSFP56-200G-SR4 200G BASE-SR4 QSFP56 Transceiver with 850nm Multi-mode and Diagnostic Monitoring

Herkunftsort:

Guangdong, China

Markenname:

Hilink

Zertifizierung:

CE RoHs

Modellnummer:

HL-QSFP56-200G-SR4

Kontakt mit uns

Bitte um ein Angebot

Hilink QSFP56-200G-SR4 200G BASE-SR4 QSFP56 Transceiver with 850nm Multi-mode and Diagnostic Monitoring

Einzelheiten zum Produkt

Produktname:

QSFP56-200G-SR4

Walveleng:

850 nm

Stecker:

MPO-12

Maximale Kabelabstand:

70 m/100 m

Garantie:

3 Jahre

OEM:

Unterstützung

Lieferzeit:

3-7 Werktage

Falltemperaturbereich:

0 ~ +70 ℃

ROHS:

Beschwerde

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 STÜCK

Preis

Verhandlungsfähig

Verpackung Informationen

Normales Paket oder OEM.

Lieferzeit

5-8 Werktage

Zahlungsbedingungen

L/C, T/T, Western Union

Versorgungsmaterial-Fähigkeit

30 Stück/Monat

Verwandte Produkte

Hilink QSFP56-200G-SR4 200G BASE-SR4 QSFP56 Transceiver with 850nm Multi-mode and Diagnostic Monitoring

Erhalten Sie besten Preis

Video

200G QSFP56 SR4 optischer Transceiver mit 100m Abstand und einem einzigen MPO12-Konnektor für Hochgeschwindigkeitsdatenübertragung

Erhalten Sie besten Preis

QSFPDD 400G SR4 optischer Transceiver mit MPO-12-Anschluss für 100 m Übertragung

Erhalten Sie besten Preis

Video

400G OSFP LR4 10km Duplex LC-Übertragung über Single Mode Fiber (SMF) OSFP-Modul

Erhalten Sie besten Preis

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver, With Diagnostic Monitoring

The QSFP56-200G-SR4 is a 4-Channel, Pluggable, Fiber-Optic QSFP56 for 200Gbps SR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 53.125Gbps per lane up to 70m using OM3 fiber and 100m using OM4 fiber. The optical interface uses MPO receptacles.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector.

Key Features

Hot-pluggable QSFP56 form factor
Data Rate up to 53.125 Gb/s PAM4 per lane
4x53Gbps PAM4 transmitter and PAM4 receiver
4 channels 850nm VCSEL laser array and 4 channels PIN photo-detector array
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
Single 3.3V Power Supply and Power Dissipation: QSFP56-200G-SR4C< 5.5W QSFP56-200G-SR4B< 6W
MPO-12 connector
Operating Case Temperature: 0℃~+70℃
RoHS compliant

Applications

200G BASE-SR4 Ethernet

Company Information

OEM/ODM orders are available upon request.

Quality Guarantee

We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Product Portfolio

We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

We accept T/T, PayPal, and Western Union.

What shipping methods do you offer?

Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

What devices are your products compatible with?

Our products are compatible with mainstream network switches and equipment.

How to place an order?

1. Confirm order details - provide the model and quantity you need
2. Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
3. Confirm and ship goods - tracking number will be sent promptly
4. We'll help track your shipment until safe delivery
