Name: Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP56-200G-SR4
Price: 66.00 USD
Availability: InStock

Zu Hause > produits > Optisches Transceivermodul >

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Herkunftsort:

Guangdong, China

Markenname:

Hilink

Zertifizierung:

CE RoHs

Modellnummer:

HL-QSFP56-200G-SR4

Kontakt mit uns

Bitte um ein Angebot

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Einzelheiten zum Produkt

Produktname:

QSFP56-200G-SR4

Datenrate:

200g

Distanz:

100m

Garantie:

3 Jahre

Zertifizierung:

RoHS compliant

OEM/ODM -Bestellung:

Unterstützung

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Preis

54~78USD/UNIT

Verpackung Informationen

Normales Paket oder OEM

Lieferzeit

5-8 Werktage

Zahlungsbedingungen

L/C, T/T, Western Union

Verwandte Produkte

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Erhalten Sie besten Preis

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring

Erhalten Sie besten Preis

Video

QDD-400G-SR8 400G MMF 850nm QSFP-DD PAM4 100m DOM MTP/MPO-16 optischer Transceiver

Erhalten Sie besten Preis

QSFP56 200G Multimode 850nm 200G BASE-SR4 QSFP56 Transceiver

Erhalten Sie besten Preis

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Feel free to contact us for details, compatibility, customization and wholesale pricing.

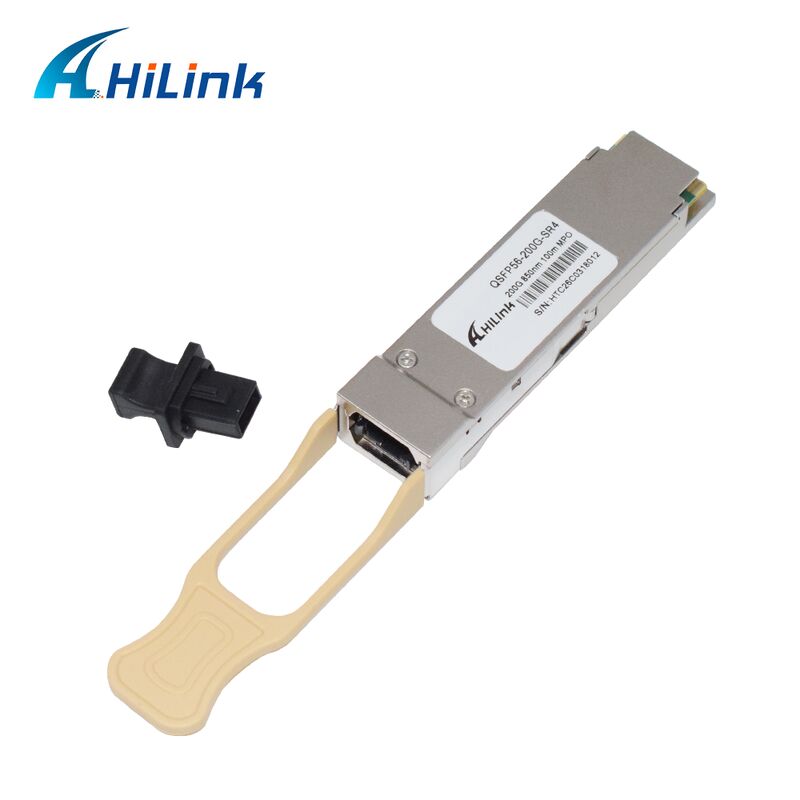

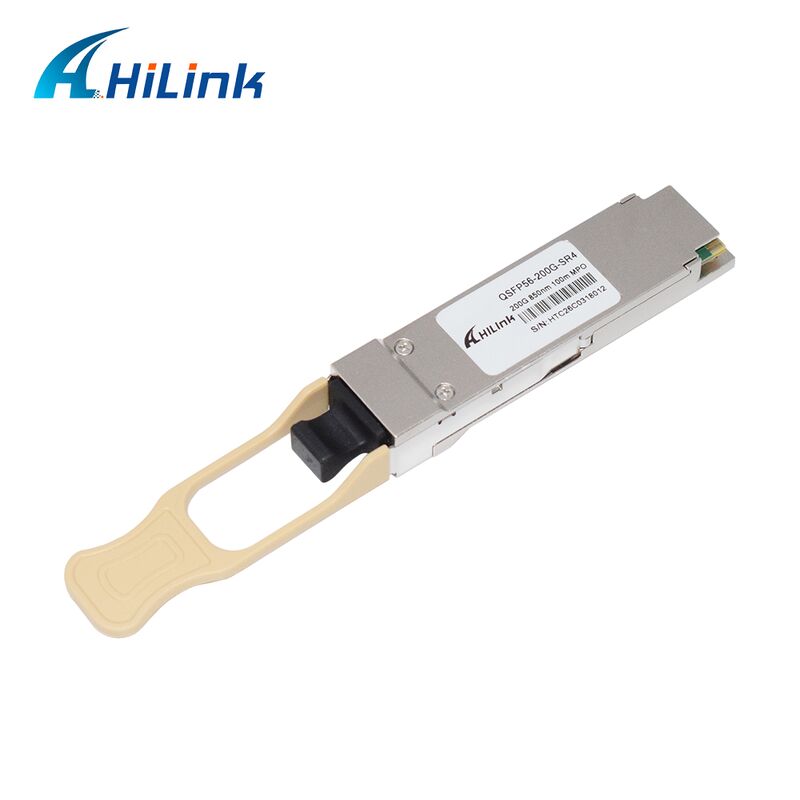

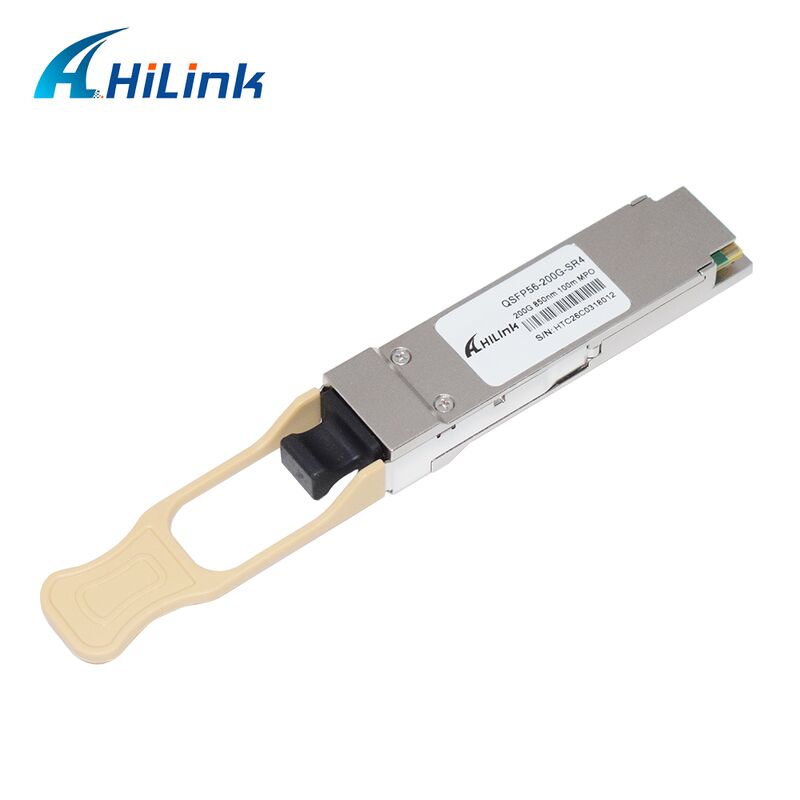

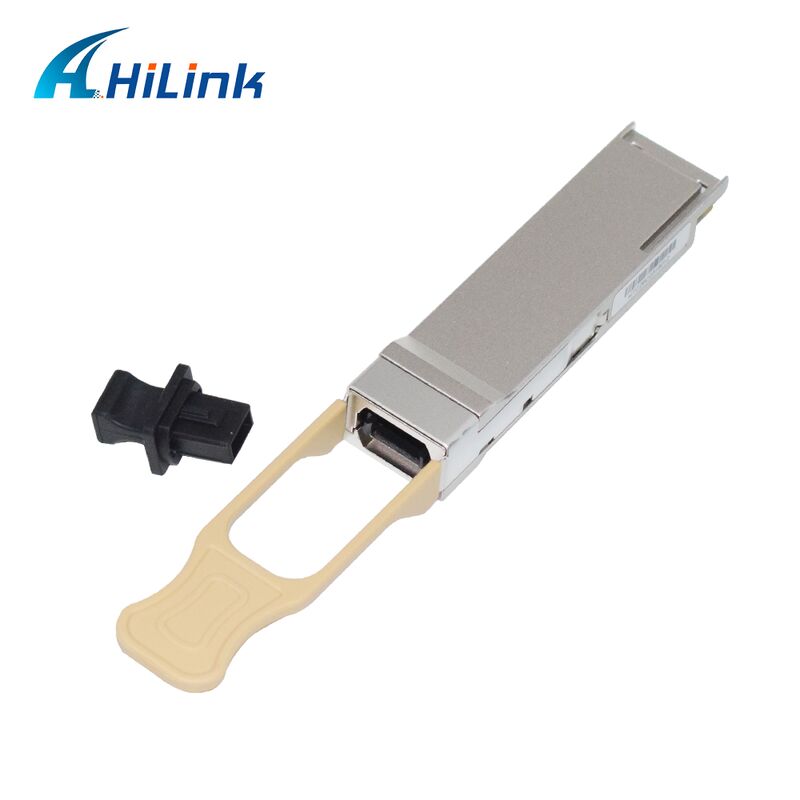

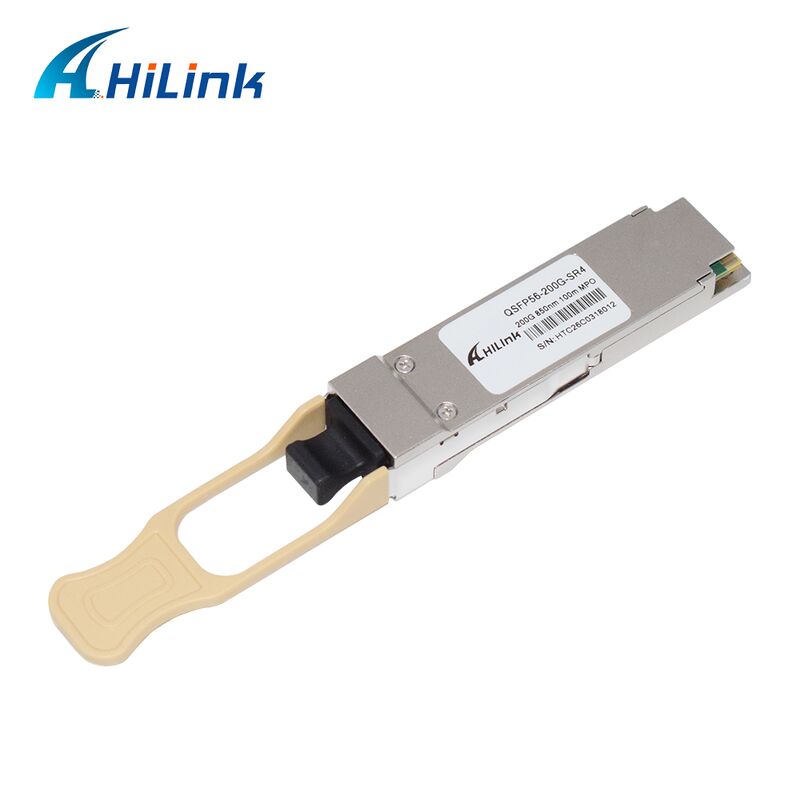

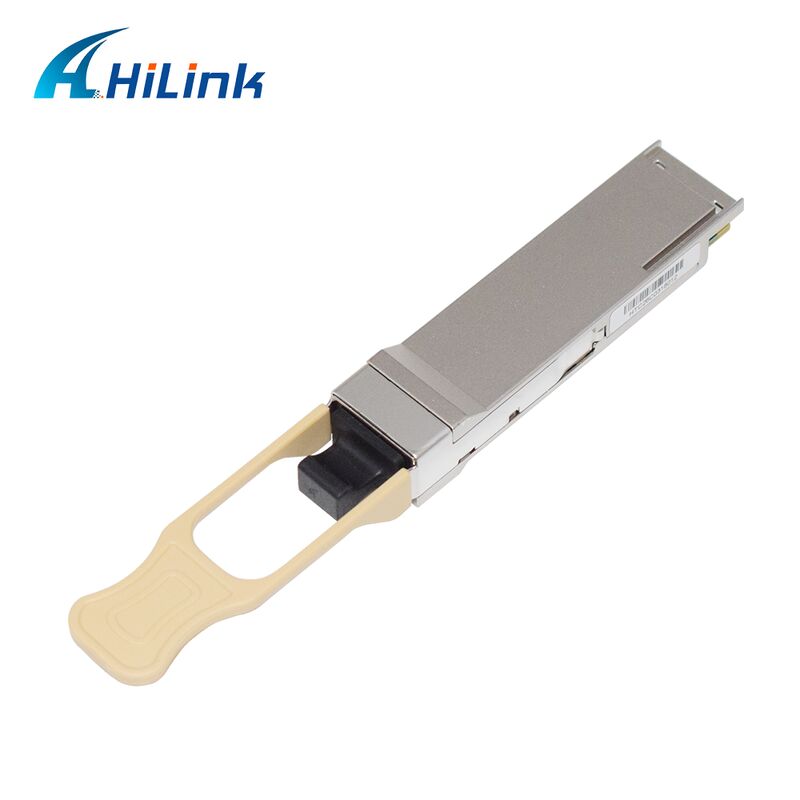

The QSFP56-200G-SR4 is a 4-Channel, Pluggable, Fiber-Optic QSFP56 for 200Gbps SR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 53.125Gbps per lane up to 70m using OM3 fiber and 100m using OM4 fiber. The optical interface uses MPO receptacles.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector.

Key Features

Hot-pluggable QSFP56 form factor
Data Rate up to 53.125 Gb/s PAM4 per lane
4x53Gbps PAM4 transmitter and PAM4 receiver
4 channels 850nm VCSEL laser array and 4 channels PIN photo-detector array
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
Single 3.3V Power Supply and Power Dissipation: QSFP56-200G-SR4C < 5.5W / QSFP56-200G-SR4B < 6W
MPO-12 connector
Operating Case Temperature: 0℃~+70℃
RoHS compliant

Applications

200G BASE-SR4 Ethernet

Ordering Information
