Name: QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP56-200G-SR4
Price: 125.00 USD
Availability: InStock

Zu Hause > produits > Optisches Transceivermodul >

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

QSFP56 200G SR4 transceiver

200G BASE-SR4 optical module

850nm multi-mode QSFP56 transceiver

Herkunftsort:

Guangdong, China

Markenname:

HILINK

Zertifizierung:

CE FCC Rohs

Modellnummer:

HL-QSFP56-200G-SR4

Kontakt mit uns

Bitte um ein Angebot

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

Einzelheiten zum Produkt

Datenrate:

200 GB/s

Distanz:

100m

Wellenlänge:

850 nm

Stecker:

MPO-12-Anschluss

Garantie:

3 Jahre

Paket:

QSFP56

Zahlungs- und Versandbedingungen

Min Bestellmenge

1Stk

Preis

$100-150

Verpackung Informationen

Statische Tasche, flacher Kunststoff, Einzelhandelsverpackung, nach Bedarf

Zahlungsbedingungen

L/C, T/T, Western Union.Paypal

Versorgungsmaterial-Fähigkeit

100/STÜCK/MONAT

Verwandte Produkte

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

Erhalten Sie besten Preis

Video

25Gb/s SFP28 BIDI-Optischer Transceiver mit 60 km Übertragung und DDM-Unterstützung

Erhalten Sie besten Preis

25G SFP28 BIDI 10km/20km/40km/50km/60km Optikmodul

Erhalten Sie besten Preis

OSFP Transceiver 400G Datengeschwindigkeit 10 km Übertragung 1310nm Wellenlänge für 400G Ethernet und Rechenzentren

Erhalten Sie besten Preis

Kontakt mit uns

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

The QSFP56-200G-SR4 is a high-performance, 4-channel pluggable fiber-optic transceiver designed for 200Gbps short-range applications. Operating at 53.125Gbps per lane using PAM4 modulation, this module supports distances up to 70m on OM3 multimode fiber and 100m on OM4 multimode fiber.

Product Overview

This QSFP56 transceiver features an MPO optical interface and 38-contact electrical edge connector, operating at a nominal wavelength of 850nm. It is engineered for reliable performance in data center and high-speed networking environments.

Key Features

Hot-pluggable QSFP56 form factor
Data rate up to 53.125 Gb/s PAM4 per lane
4x53Gbps PAM4 transmitter and receiver
4-channel 850nm VCSEL laser array and PIN photo-detector array
Maximum link length: 70m on OM3 MMF, 100m on OM4 MMF
Digital diagnostics via I2C interface
Single 3.3V power supply
Power dissipation: QSFP56-200G-SR4C < 5.5W, QSFP56-200G-SR4B < 6W
MPO-12 connector
Operating case temperature: 0℃ to +70℃
RoHS compliant

Applications

200GBASE-SR4 Ethernet links
Data center interconnects

Ordering Information

Part Number	Product Description
QSFP56-200G-SR4C	200G QSFP56 SR4 CDR MPO-12 PC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC
QSFP56-200G-SR4B	200G QSFP56 SR4 DSP MPO-12 PC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC
QSFP56-200G-SR4C1	200G QSFP56 SR4 CDR MPO-12 APC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC
QSFP56-200G-SR4B1	200G QSFP56 SR4 DSP MPO-12 APC connector, 70m on OM3 MMF and 100m on OM4 MMF, 0ºC to +70ºC

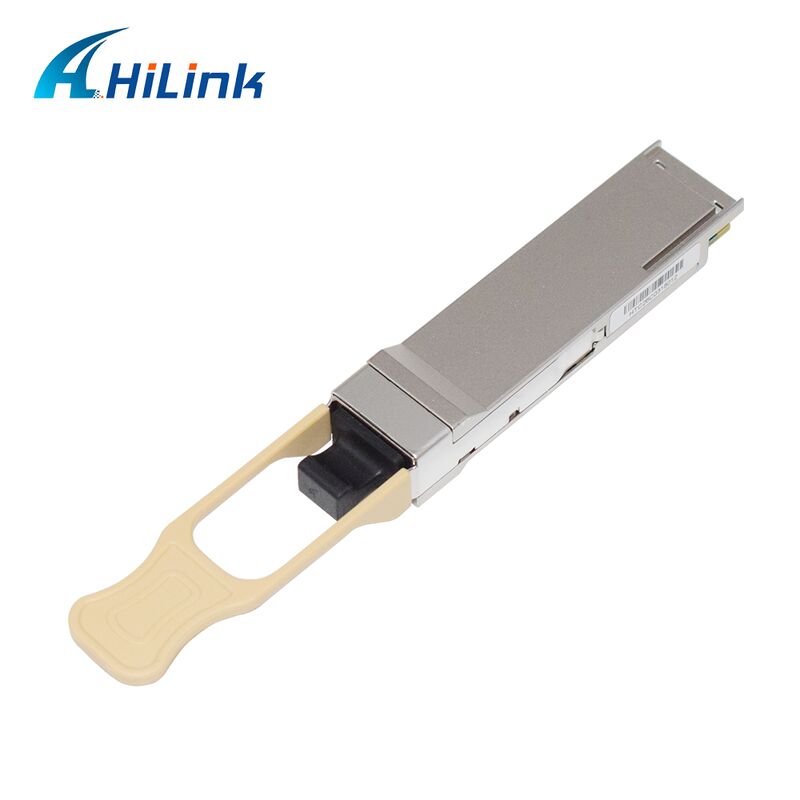

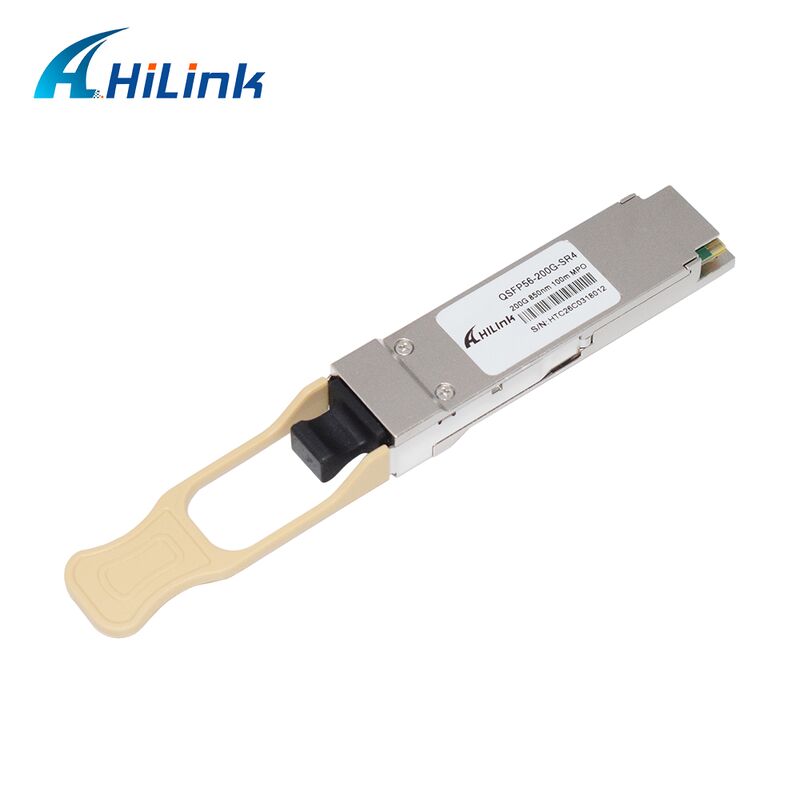

Product Images

Mechanical Drawings

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

T/T, PayPal, and Western Union are acceptable.

What are the shipping methods you offer?

Our usual shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

How to place an order?

1. Confirm order details including model and quantity required.
2. Review and confirm Proforma Invoice, then arrange payment.
3. We confirm and ship goods, providing tracking number promptly.
4. We assist with tracking until safe receipt of goods.

We offer various product types. If you cannot find the specific item you need, please send us an inquiry and we will follow up shortly.
