Name: 200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP200G-LR8
Price: 130.00 USD
Availability: InStock

Zu Hause > produits > Optisches Transceivermodul >

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Herkunftsort:

China

Markenname:

HiLink or OEM

Zertifizierung:

CE FCC ROSH

Modellnummer:

HL-QSFP200G-LR8

Kontakt mit uns

Bitte um ein Angebot

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector

Einzelheiten zum Produkt

Produktname:

200G QSFP DD PSM8 10 km optischer Transceiver (MPO16)

Übertragung:

10 km

Datengeschwindigkeit:

200g

Stecker:

MPO16

Wellenlängen:

1310 nm

OEM:

Unterstützung

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 STÜCK

Preis

Verhandlungsfähig

Verpackung Informationen

Normale Verpackung oder OEM

Lieferzeit

5-8 Werktage

Zahlungsbedingungen

T/T, Western Union, Paypal

Versorgungsmaterial-Fähigkeit

2000pcs pro Woche

Verwandte Produkte

SFP+ 10G BIDI 5KM Optical Transceiver with LC Connector for High-Speed Data Transmission

Erhalten Sie besten Preis

10Gb/s XFP Bi-direktionaler Transceiver 40km Reichweite TX1270/1330nm RX1330/1270nm RoHS-konform

Erhalten Sie besten Preis

Hilink 10G Datenrate SFP+ Transceiver mit 30M/80M Abstand und RoHS-konformem Kupfermodul 10GBASE-T

Erhalten Sie besten Preis

Hilink HL-SFP-T 1000BASE-T und 10/100/1000BASE-T Kupfer-SFP-Transceiver mit RJ-45-Anschluss

Erhalten Sie besten Preis

Kontakt mit uns

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

Description

The Technologies HL-QSFP200G-LR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16 fiber MTP (MPO) connector. This module incorporates Hilink Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service. The 200G QSFP DD PSM8 is one kind of parallel transceiver. DFB and PIN array package is key technique, through I2C system can contact with module.

Features

8 channels full-duplex transceiver modules
Supports 8×25Gb/s aggregate bit rates
Supports 8×10Gb/s aggregate bit rates if requires
8 channels 1310nm DFB
8 channels PIN photo detector array
Internal CDR circuits on both receiver and transmitter channels
Support CDR bypass
Low power consumption <6.5W
Hot Pluggable QSFP DD form factor
Up to 10km reach for G.652 SMF
Single male MPO16(APC 8-degree) connector receptacle
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS compliant (lead free)

Applications

2×100G Ethernet links
Infiniband DDR/EDR
Datacenter and Enterprise networking

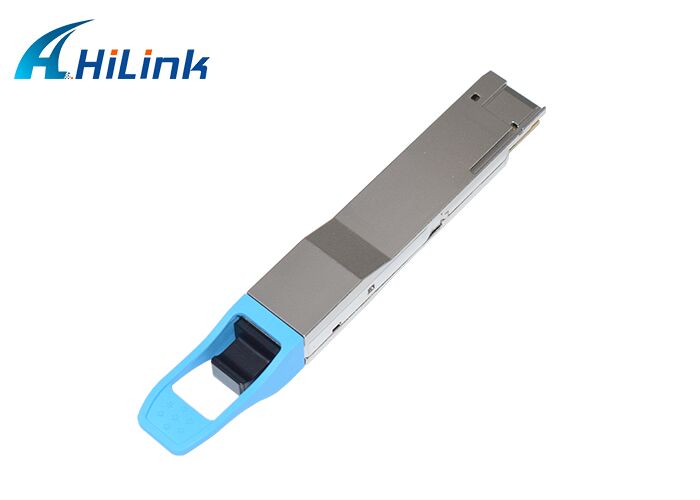

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 0

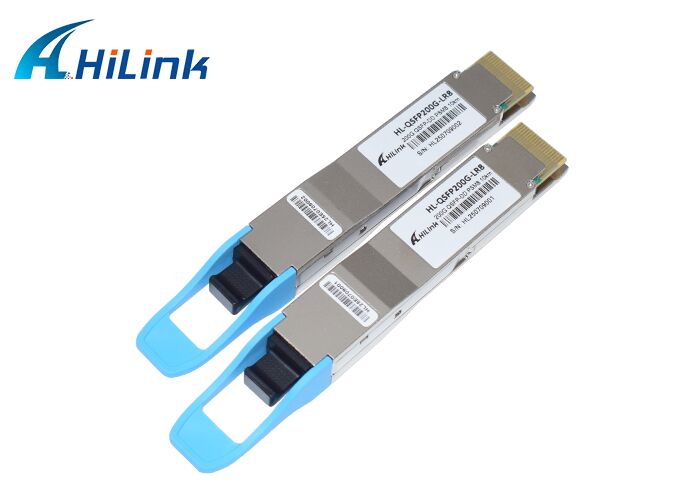

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 1

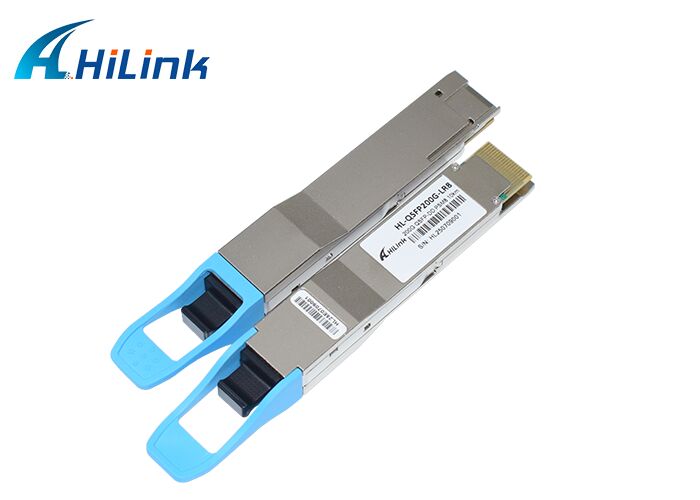

200G QSFP DD PSM8 Optical Transceiver with 10KM Transmission and MPO16 Connector 2
