Name: OSFP 400G LR4 1310nm 10km Transceiver Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: OSFP-400G-LR4
Price: 130.00 USD
Availability: InStock

Zu Hause > produits > Optisches Transceivermodul >

OSFP 400G LR4 1310nm 10km Transceiver Module

OSFP 400G LR4 transceiver module

1310nm 10km optical transceiver

400G LR4 fiber optic module

Herkunftsort:

Guangdong, China

Markenname:

Hilink

Zertifizierung:

CE Rohs

Modellnummer:

OSFP-400G-LR4

Kontakt mit uns

Bitte um ein Angebot

OSFP 400G LR4 1310nm 10km Transceiver Module

Einzelheiten zum Produkt

Produktname:

OSFP-400G-LR4

Datenrate:

400G

Erreichen:

10 km

verwenden:

Rechenzentrum

Faseranschluss:

Duplex LC

Betriebstemperatur:

0 bis 70 ℃

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Stück

Preis

Send Inquiry know latest price

Verpackung Informationen

Plastikbox+Karton

Lieferzeit

5-8 Werktag

Zahlungsbedingungen

T/T, Western Union, Alipay, Paypal/Wechat/Handelsversicherung

Versorgungsmaterial-Fähigkeit

2000 Stücke/Woche

Verwandte Produkte

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

Erhalten Sie besten Preis

HL-Cir-1310 3-Ports Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box für Rechenzentrum

Erhalten Sie besten Preis

Hilink 100G QSFP28 Optical Transceiver Modul mit 100km Entfernung 100G Datenrate und ZR4+ Compliance

Erhalten Sie besten Preis

HL-QSFP28-100G-FR1 100Gbps QSFP28 FR Single Lambda Transceiver mit 2 km Reichweite optisches Transceiver-Modul

Erhalten Sie besten Preis

Kontakt mit uns

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

OSFP 400G LR4 1310nm 10km Transceiver Module

Hilink's OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s. The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.

Key Features

Supports 425Gbps
Single 3.3V Power Supply
Up to 10km over SMF with KP4 FEC supported at the Host side
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface
PIN and TIA array on the receiver side
Power dissipation < 8W
Case temperature range: 0°C to 70°C (commercial)
Safety Certification: TUV/UL/FDA*1
RoHS Compliant

Applications

400G Ethernet
400G-LR4 applications
Data center
InfiniBand

Transmitter Specifications

The transmitter path contains an 8x50Gbps 400GAUI-8 electrical input with Equalization (EQ) block, integrated electrical multiplexer, integrated driver, 4 externally modulated lasers, optical multiplexer and diagnostic monitors. The integrated electrical multiplexer and integrated driver converts 8 channels of 50Gbps (PAM4) electrical input data to 4 channels of 100Gbps (PAM4) parallel CWDM optical signals. The transmitter complies with EN 60825 and CDRH Class 1 human eye safety compliance.

Receiver Specifications

The receiver path contains optical de-multiplexer, eight PIN photodiodes, trans-impedance amplifiers (TIA), integrated de-multiplexer and 8x50G 400GAUI-8 compliant electrical output blocks. The PIN-TIA and integrated de-multiplexer converts 4 channels of 100Gbps (PAM4) parallel optical signals to 8 channels of 50Gbps (PAM4) electrical output data.

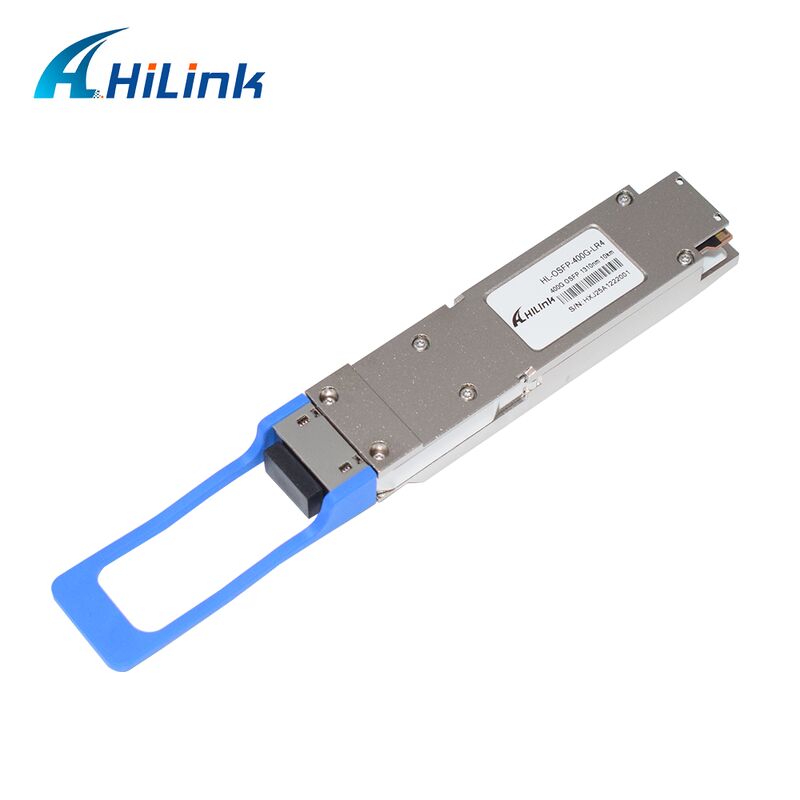

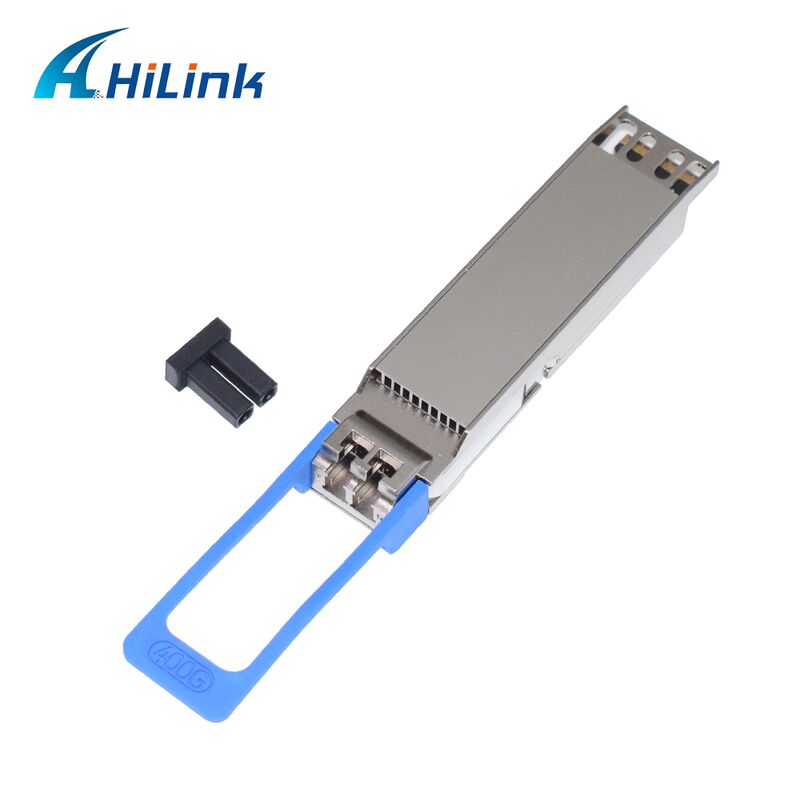

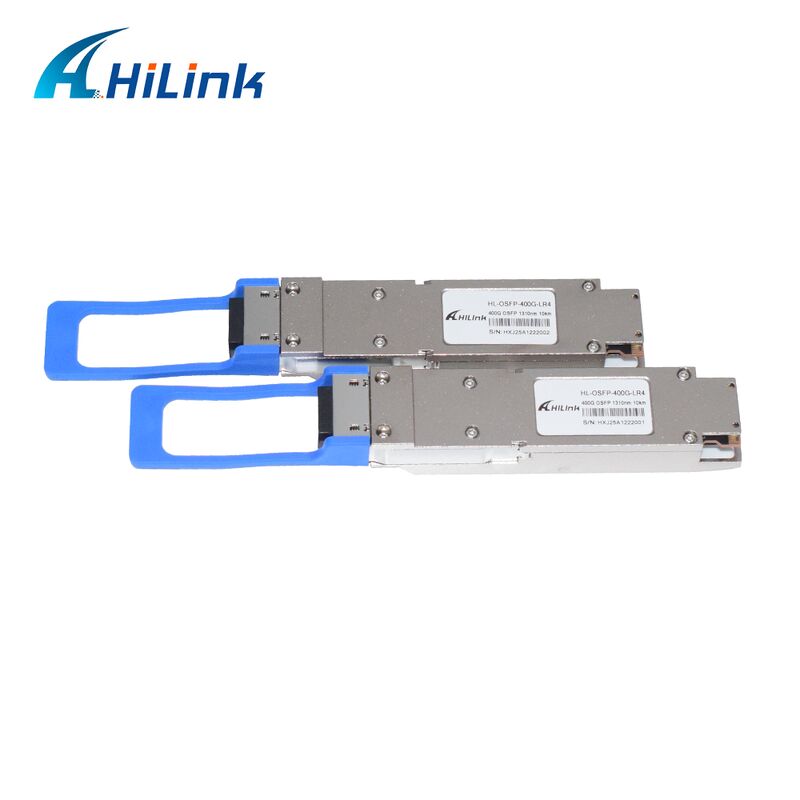

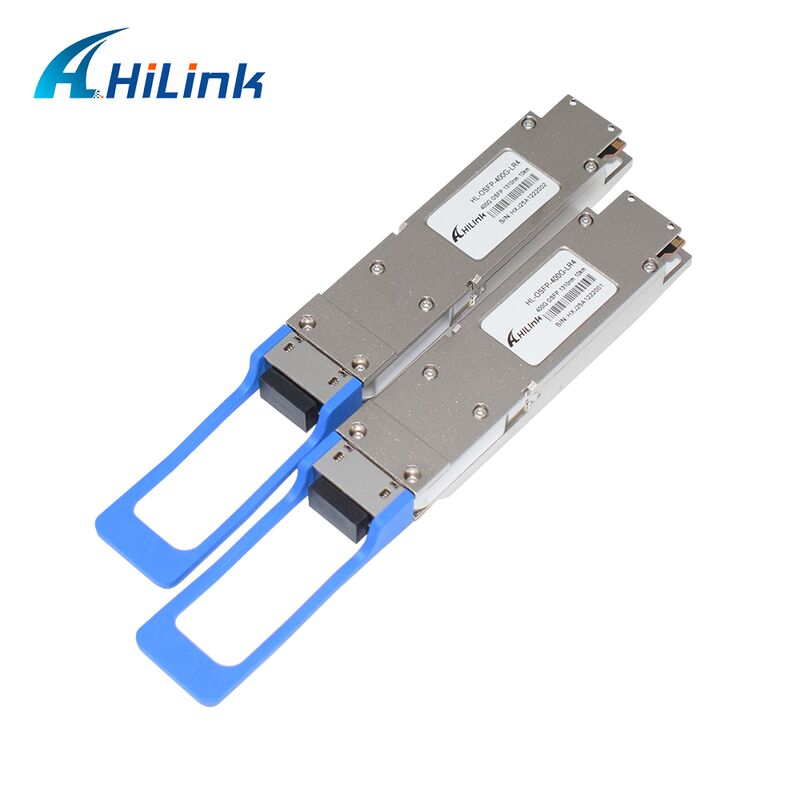

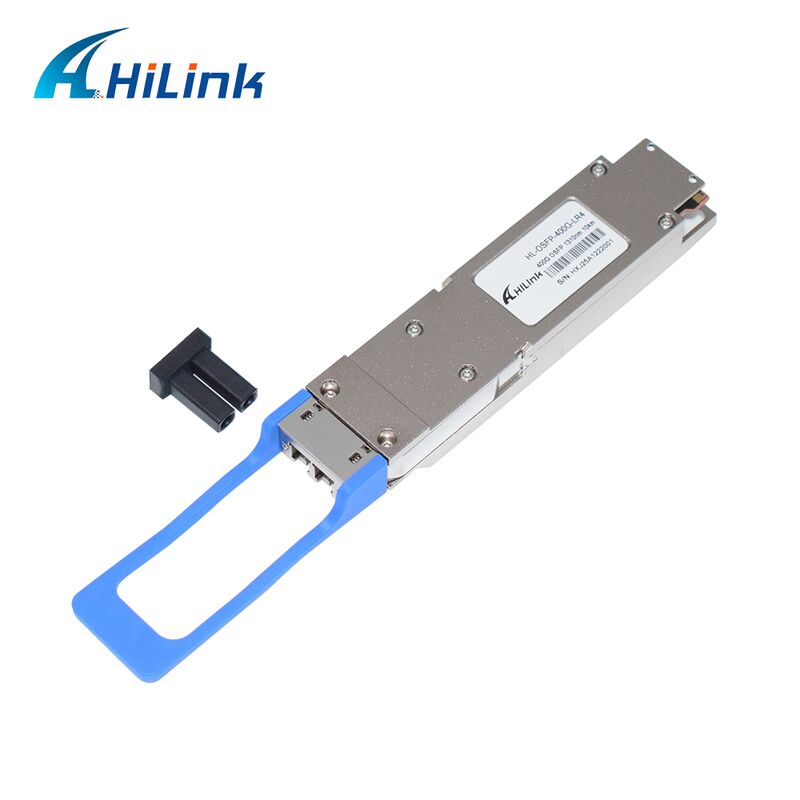

Product Images

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
