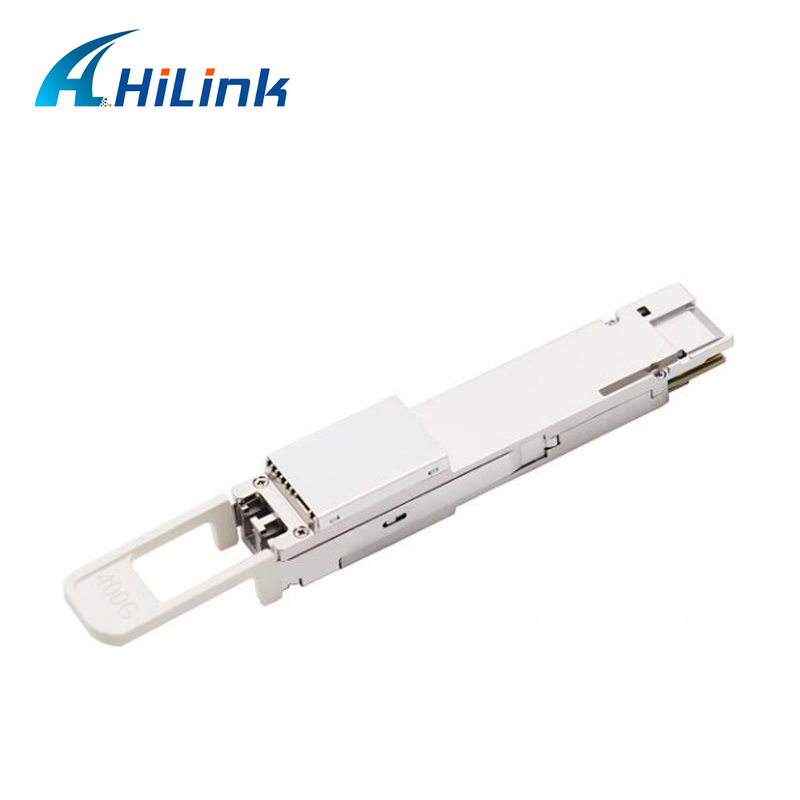

Name: 400G QSFP-DD ZR Coherent Transceiver 0-75℃
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: 400G-QSFPDD-ZR
Price: 130.00 USD
Availability: InStock

Zu Hause > produits > Optisches Transceivermodul >

400G QSFP-DD ZR Coherent Transceiver 0-75℃

400G QSFP-DD ZR transceiver module

coherent optical transceiver 0-75℃

QSFP-DD transceiver with extended temperature range

Herkunftsort:

Guangdong, China

Markenname:

Hilink

Zertifizierung:

CE Rohs

Modellnummer:

400G-QSFPDD-ZR

Kontakt mit uns

Bitte um ein Angebot

400G QSFP-DD ZR Coherent Transceiver 0-75℃

Einzelheiten zum Produkt

Produktname:

400G-QSFPDD-ZR

Datenrate:

400g

Betriebstemperatur:

0 zu 75℃

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Stücke

Preis

Send Inquiry know latest price

Verpackung Informationen

Plastikbox+Karton

Lieferzeit

5-8 Arbeitstag

Zahlungsbedingungen

T/T, Western Union, Alipay, Paypal/Wechat/Handelsversicherung

Versorgungsmaterial-Fähigkeit

2000 Stücke/Woche

Verwandte Produkte

100G QSFP28 SR BiDi OM4 MMF 100m LC Optischer Transceiver

Erhalten Sie besten Preis

Video

OSFP800 800G 2xSR4 Optischer Transceiver 12V Glasfaser-Transceiver MPO-Anschluss

Erhalten Sie besten Preis

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

Erhalten Sie besten Preis

25G SFP28 BIDI-Optikmodul Faseranschluss LC 0 bis 70C 3km/10km/40km/60km

Erhalten Sie besten Preis

Kontakt mit uns

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

400G QSFP-DD ZR Coherent Transceiver 0-75℃

Product Overview

The 400G QSFP-DD ZR Transceiver is a high performance, cost effective module for optical data communication applications to 400G. The 400G QSFP-DD ZR is designed to 400G 120Km DCI DWDM applications without inline chromatic dispersion compensation.

Features

QSFP-DD MSA compliant type 2B package
Up to 120Km transmission distance
Client signal 400GbE or 4x100GbE
Line Modulation format 400G DP-16QAM
C-band tunable, supports 100/75GHz grid spacing, support 0.1GHz fine tuning
TX power -13dBm~-9dBm tunable
Support ingress LF hold-off time configure
Support hitless firmware upgrade
Compact size (18.35 mm × 93.26 mm × 8.50 mm)
Duplex LC Receptacle
Operating case temperature: 0℃ to 75°C
Maximum power consumption 18W (400GbE)
Single 3.3 V power supply
RoHS 2 compliant

Applications

Edge DCI 400GBASE-ZR application
30~40Km unamplified 400GbE P2P link
Up to 120Km P2P link with amplification

Product Images

Quality Assurance

Warranty & Quality Commitment:
All advertised optical transceivers are brand new with new components. We never use old or refurbished materials. Each unit undergoes functional and aging tests before shipment.

3-Year Warranty:
We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available upon request.
