Name: 100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: QSFP28-100G-SRBD
Price: 130.00 USD
Availability: InStock

Zu Hause > produits > Optisches Transceivermodul >

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver

QSFP28 SR BiDi optical transceiver

100G OM4 MMF transceiver module

LC optical transceiver with 100m range

Herkunftsort:

Guangdong, China

Markenname:

Hilink

Zertifizierung:

CE Rohs

Modellnummer:

QSFP28-100G-SRBD

Kontakt mit uns

Bitte um ein Angebot

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver

Einzelheiten zum Produkt

Produktname:

QSFP28-100G-SRBD

Datenrate:

100g

Erreichen:

70 m mit OM3, 100 m mit OM4 und 150 m mit OM5

Betriebstemperatur:

0 bis 70 ℃

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Stücke

Preis

Send Inquiry know latest price

Verpackung Informationen

Plastikbox+Karton

Lieferzeit

5-8 Arbeitstag

Zahlungsbedingungen

T/T, Western Union, Alipay, Paypal/Wechat/Handelsversicherung

Versorgungsmaterial-Fähigkeit

2000 Stücke/Woche

Verwandte Produkte

Video

OSFP800 800G 2xSR4 Optischer Transceiver 12V Glasfaser-Transceiver MPO-Anschluss

Erhalten Sie besten Preis

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

Erhalten Sie besten Preis

25G SFP28 BIDI-Optikmodul Faseranschluss LC 0 bis 70C 3km/10km/40km/60km

Erhalten Sie besten Preis

Video

25Gb/s SFP28 BIDI 60km DDM-Transceiver

Erhalten Sie besten Preis

Kontakt mit uns

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

100G QSFP28 SR BiDi OM4 MMF 100m LC Optical Transceiver

Product Specifications

Attribute	Value
Product Name	QSFP28-BIDI-SR
Data Rate	100G
Reach	70m with OM3, 100m with OM4 and 150m with OM5
Operating Temperature	0 to 70℃

Product Overview

The 100G QSFP28 Bidi transceiver supports connections over multimode fiber (MMF) up to 70m with OM3, 100m with OM4 and 150m with OM5. It uses duplex LC connectors. The wavelengths are 850nm and 900nm.

Features

Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm
Compliant to QSFP28 SFF-8636 Specification
Aggregate bandwidth of > 100Gbps
Dual wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850 nm/900 nm
QSFP28 MSA compliant
Capable of over 70m transmission on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
Single +3.3V power supply operating
Without digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
Support 40G/100Gbps

Applications

100 Gigabit Ethernet interconnects
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications

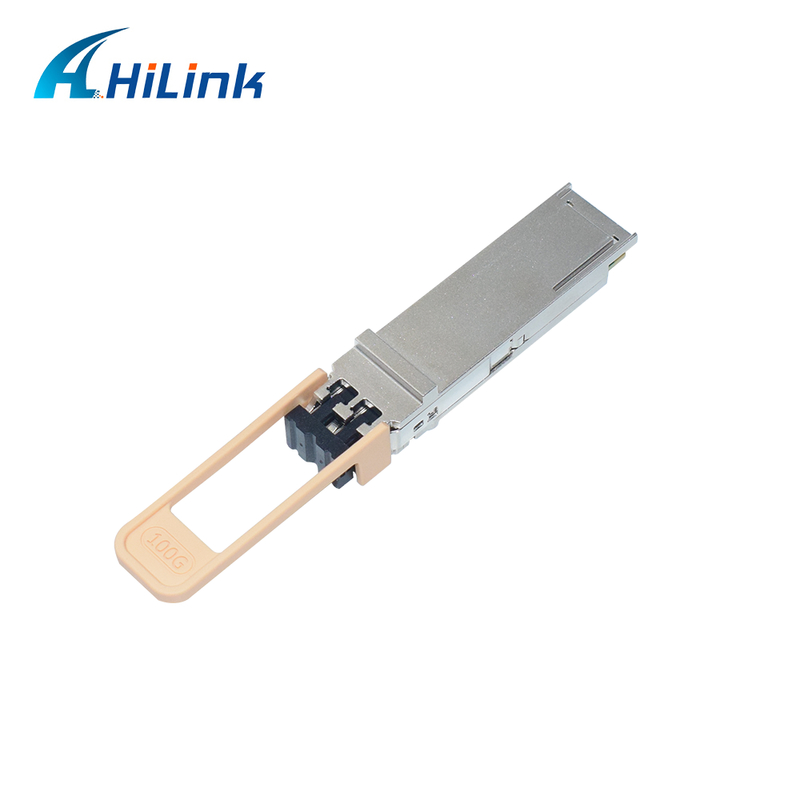

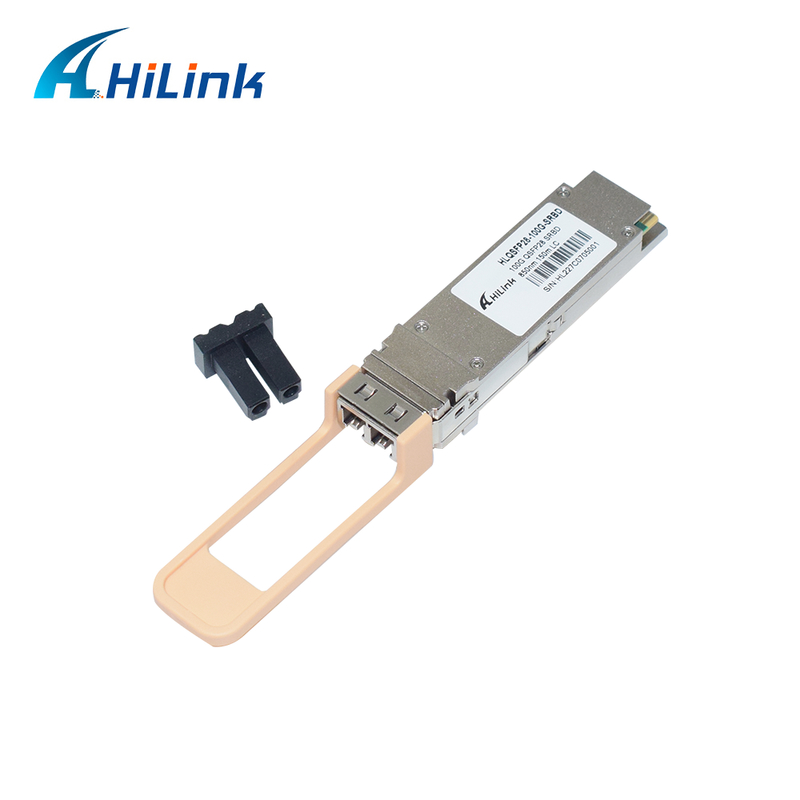

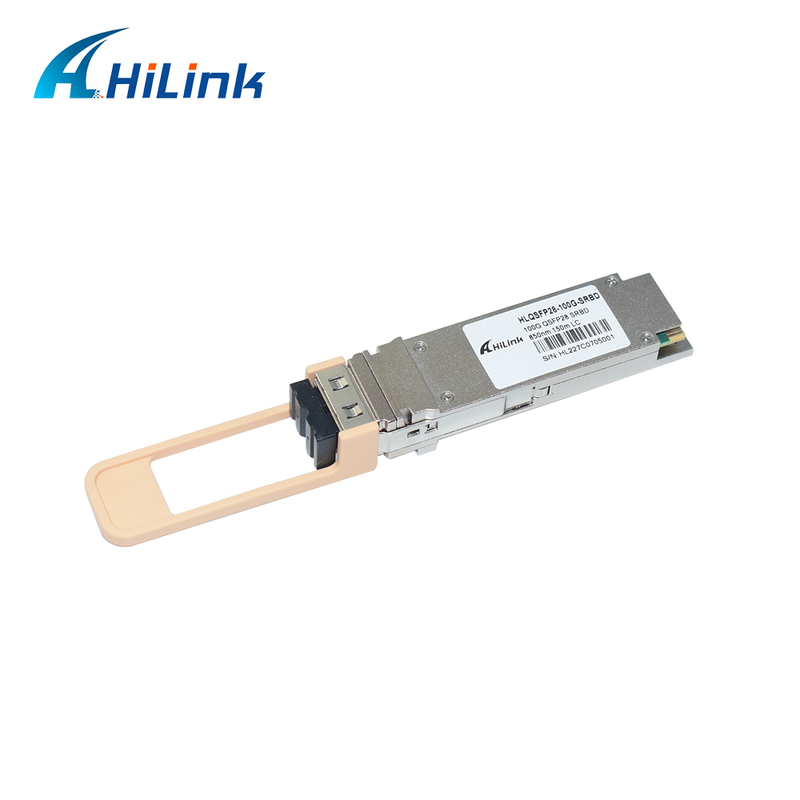

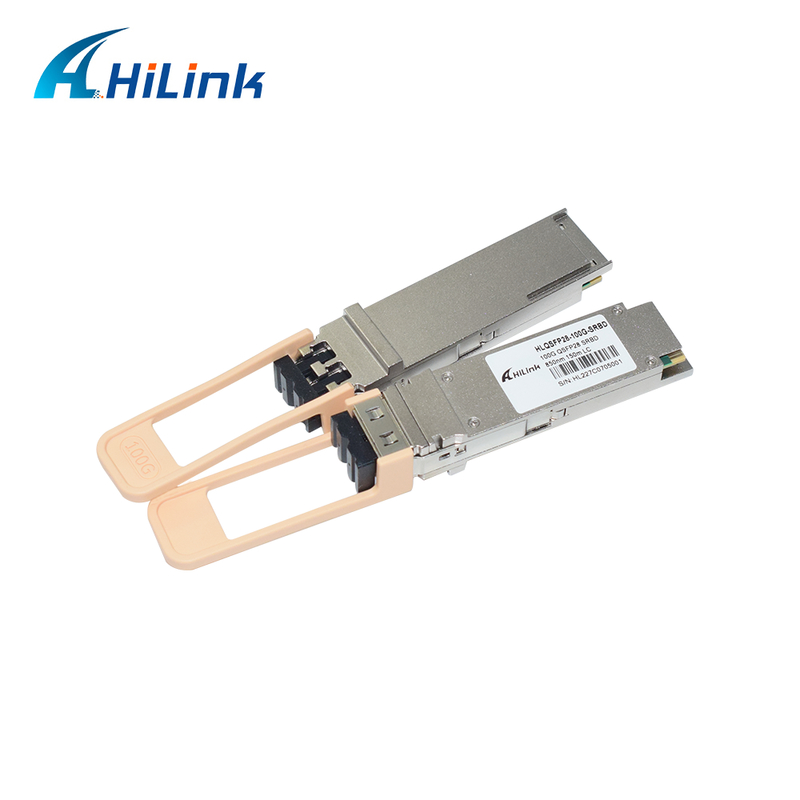

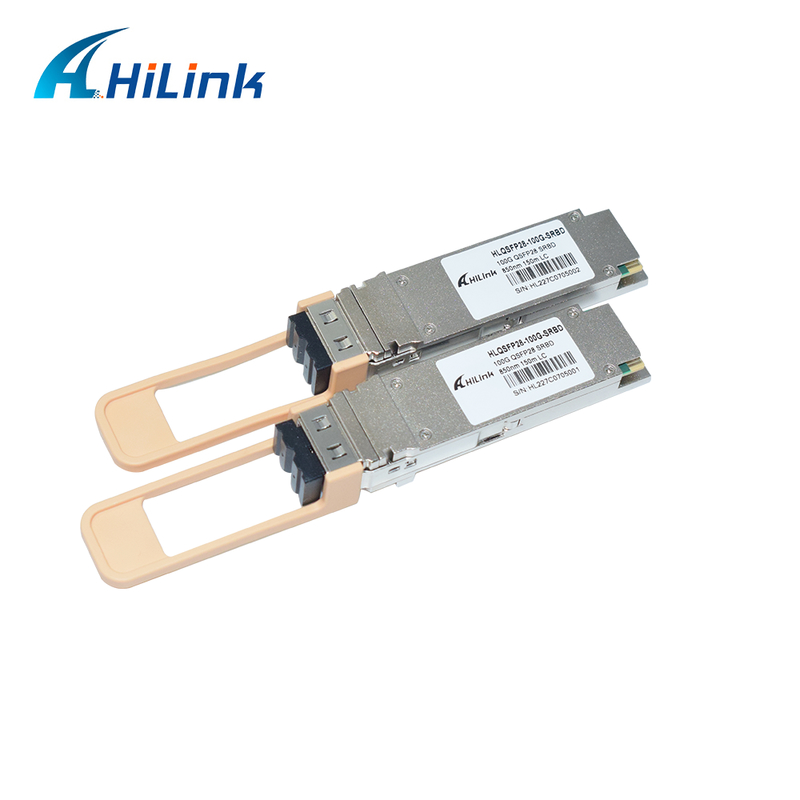

Product Images

Quality Assurance

Warranty & Quality Commitment:
All advertised optical transceivers are brand new with new components. We never use old or refurbished materials. Each unit undergoes functional and aging tests before shipment.

3-Year Warranty:
We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available upon request.
