Name: 25Gbps BIDI 40KM 1270/1310nm 40KM APD LC DOM Transceiver 25G Ethernet Fiber Optic Transceivers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-Bidi-40 km
Price: 893.00 USD
Availability: InStock

Zu Hause > produits > SFP+-Transceiver-Modul >

25Gbps BIDI 40KM 1270/1310nm 40KM APD LC DOM Transceiver 25G Ethernet Fiber Optic Transceivers

25Gbps BIDI SFP+ transceiver

40KM APD fiber optic transceiver

1270/1310nm LC DOM transceiver module

Herkunftsort:

Guangdong, China

Markenname:

HILINK

Zertifizierung:

CE FCC Rohs

Modellnummer:

HL-SFP28-Bidi-40 km

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Datenübertragungsrate:

25g

Maximale Entfernung:

600km

Wellenlänge 1:

1270 nm/1310 nm

Stecker:

LC Siimplex

Garantie:

3 Jahre

CE FCC ROHS:

Unterstützung

Zahlungs- und Versandbedingungen

Min Bestellmenge

1pcs

Preis

Verhandlungsfähig

Verpackung Informationen

Kartonkasten, Kleinkasten oder, durch erfordert

Lieferzeit

1-4 Tage

Zahlungsbedingungen

L/C, T/T, Western Union, Paypal

Versorgungsmaterial-Fähigkeit

3000 Paare pro Woche

Verwandte Produkte

Video

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

Erhalten Sie besten Preis

Video

10G-ZR4-80KM 10G BIDI Transceiver Modul 80KM 1490nm/1550nm SFP+ STM-64 WDM 8SFP+ SMF

Erhalten Sie besten Preis

HL-SFP-BX-10KM 10G SFP+ Transceiver Modul BIDI 20km 1270nm 1330nm LC Stecker RoHS

Erhalten Sie besten Preis

BIDI 10G WDM SMF-Optischer Transceiver SFP+ 100KM Tx1490nm/Rx1550nm mit LC-Optischen Fibertransceivern für FTTH-Netzwerke

Erhalten Sie besten Preis

Kontakt mit uns

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

25Gbps BIDI 40KM 1270/1310nm 40KM APD LC DOM Transceiver 25G Ethernet Fiber Optic Transceivers

Product Specifications

Attribute	Value
Data transfer rate	25G
Max Distance	600km
Wavelength 1	1270nm/1310nm
Connector	LC Simplex
Warranty	3 Years
CE FCC Rohs	Support

Product Description

The HL25G40x-xxTransceiver is intended for 40km reach service from 24.33Gb/s to 25.78Gb/s BI-direction single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

The low jitter and low bit error rate optical assembly features a DML laser transmitter and APD/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Features

Operating data rate up to 25.78Gbps
Up to 40km transmission distance
High sensitivity APD photodiode and TIA
Rate Adaptation
LC single connector
Hot pluggable 20pin connector
Low power consumption <1.5 W
Single +3.3V±5% power supply
Compliant with SFF-8472
Fully RoHS Compliant
Operating temperature range:
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C

Application

25GE BASE-LR Ethernet
CPRI Option 10/eCPRI

25G SFP Transceivers

Model	Description
SFP28-25G-SR	SFP28 25Gbps 850nm 100M LC DOM
SFP28-25G-LR	SFP28 25Gbps 1310nm 10KM LC DOM
SFP28-25G-ER	SFP28 25Gbps 1310nm 40KM LC DOM
SFP28-25G-BIDI-10KM	SFP28 25Gbps BIDI1270/1310nm 10KM LC DOM
SFP28-25G-BIDI-40KM	SFP28 25Gbps BIDI1270/1310nm 40KM LC DOM
SFP28-25G-BIDI-50KM	SFP28 25Gbps BIDI1270/1310nm 50KM LC DOM

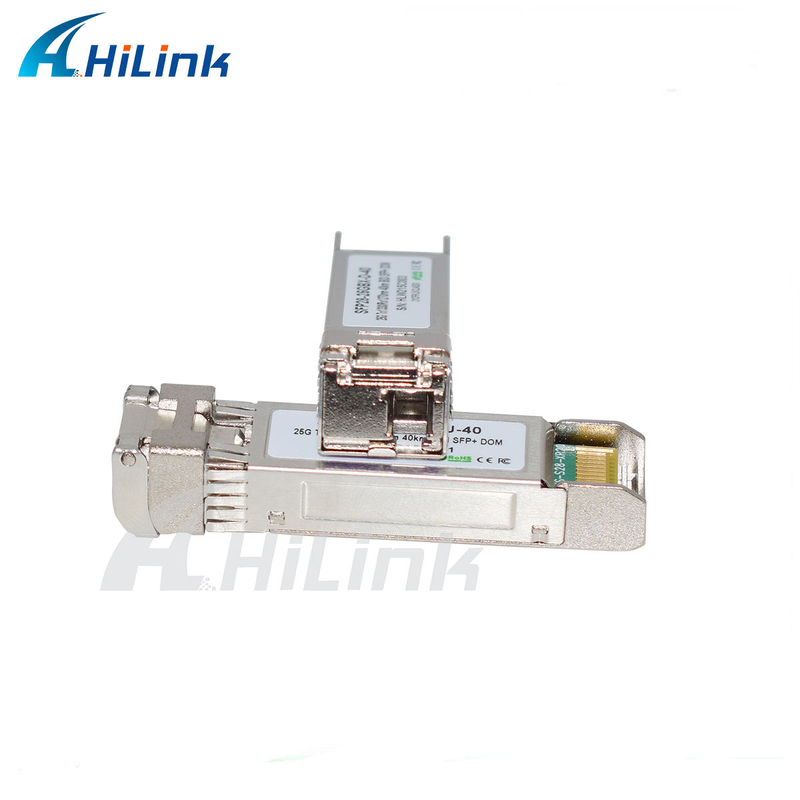

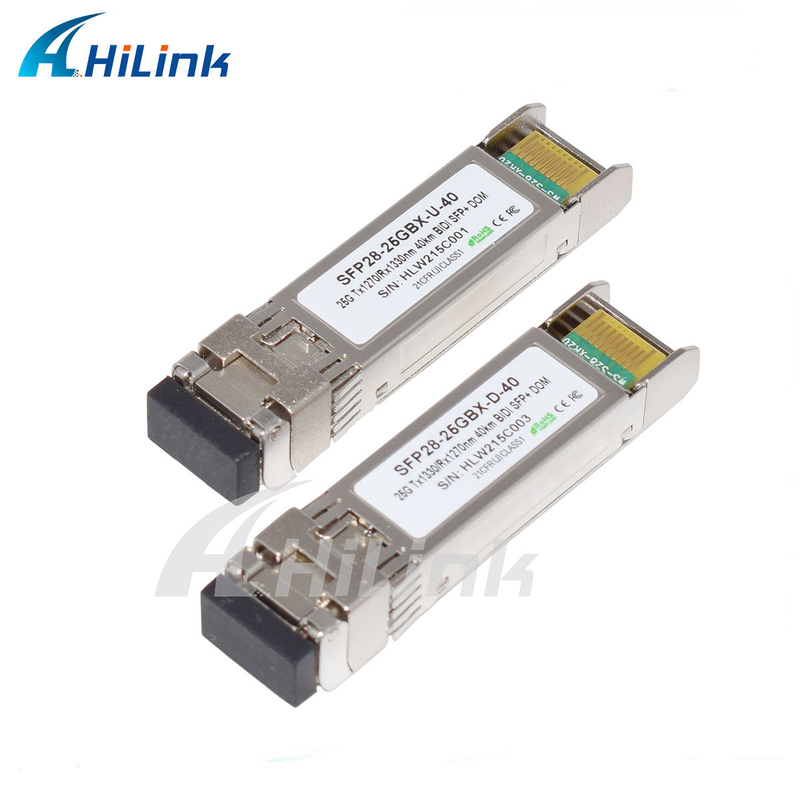

Product Images

Mechanical Dimensions
