Name: HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-GLC-T
Price: 130.00 USD
Availability: InStock

Zu Hause > produits > Optisches Transceivermodul >

HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Place of Origin:

Guangdong, China

Markenname:

Hilink

Zertifizierung:

CE Rohs

Model Number:

HL-GLC-T

Kontakt mit uns

Bitte um ein Angebot

HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Einzelheiten zum Produkt

Product Name:

1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Data Rate:

1000BASE-T and 10/100/1000BASE-T

Reach:

100m

Fiber Connector:

RJ45 Copper

Operating Temperature:

0 to 70℃

Markenname:

Hilink

Zahlungs- und Versandbedingungen

Minimum Order Quantity

1 pieces

Preis

Send Inquiry know latest price

Packaging Details

Plastic box+Carton

Delivery Time

5-8 working day

Payment Terms

T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance

Supply Ability

2000 Pieces/Week

Verwandte Produkte

400G QSFPDD 850nm 100m SR4 MPO Generisch kompatibel 400GBASE-SR8 OSFP PAM4 850nm 100m mit FEC DDM MPO-16 MMF Optisches Transceiver-Modul

Erhalten Sie besten Preis

Hochwertiges 10G Ethernet WDM BIDI ER 40KM 1270/1330 XFP-Optikmodul Glasfaserausrüstung

Erhalten Sie besten Preis

Hilink 10GB SFP+ 10G-LRS-Transceiver mit 3-Jahres-Garantie 1310nm Dual LC Connector 1.4KM SMF Kommunikation & Netzwerkprodukt

Erhalten Sie besten Preis

Brandneue kompatible GPON OLT Klasse C++ SFP-Module 1.25G 2.5G GPON OLT Klasse C++

Erhalten Sie besten Preis

Kontakt mit uns

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Description:

HL-SFP-Tx Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.

Features:

¨ Up to 1.25Gb/s bi-directional data links

¨ Hot-pluggable SFP footprint

¨ TX Disable and RX Los/without Los function

¨ Fully metallic enclosure for low EMI

¨ +3.3V single power supply

¨ Low power dissipation (1.05 W typical)

¨ Compact RJ-45 connector assembly

¨ Access to physical layer IC via 2-wire serial bus

¨ 1000 BASE-T operation in host systems with SERDES interface

¨ 10/100/1000Mbps compliant in host systems with SGMII interface

Operating case temperature range of

Standard : 0 to +70°C

Industrial : -40 to +85°C

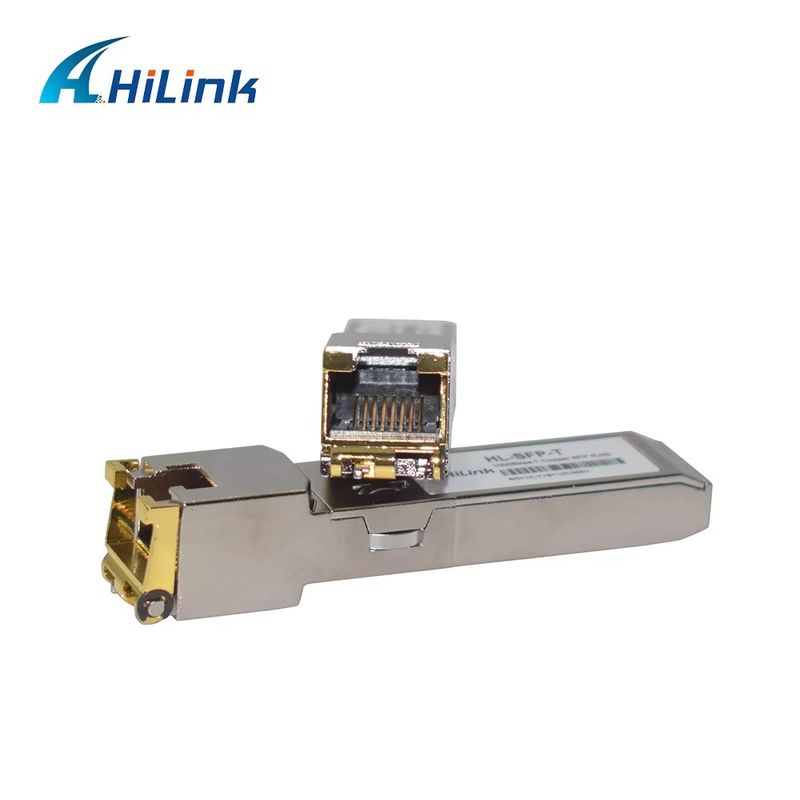

Real Photo Show:

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
